FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Product Categories
WanyYi Telecom Tech Co.,Limited
Contact Now

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

  • 1
  • 2
  • 3

Brand Name : Factory Supplying OEM/ODM

Model Number : FC/APC~FC/APC OS2

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : US$1.4/pcs (3M, ≤0.3DB)

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 80000Pieces per Day

Delivery Time : 3-5 days

Packaging Details : Standard Packing

Part No. : FC/APC~FC/APC

Mode/Cores : Single-mode/ Dual core

Length : 1M-100M Customizable

OEM/ODM : YES

Shipping : TNT,DHL,UPS,FEDEX Or EMS

Product Name : Single-mode DX Optical fiber jumper

Contact Now

FC/APC~FC/APC single-mode dual-core Optical fiber jumper carrier-grade OS2 Fiber Optic pigtail cable customizable NEW

Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

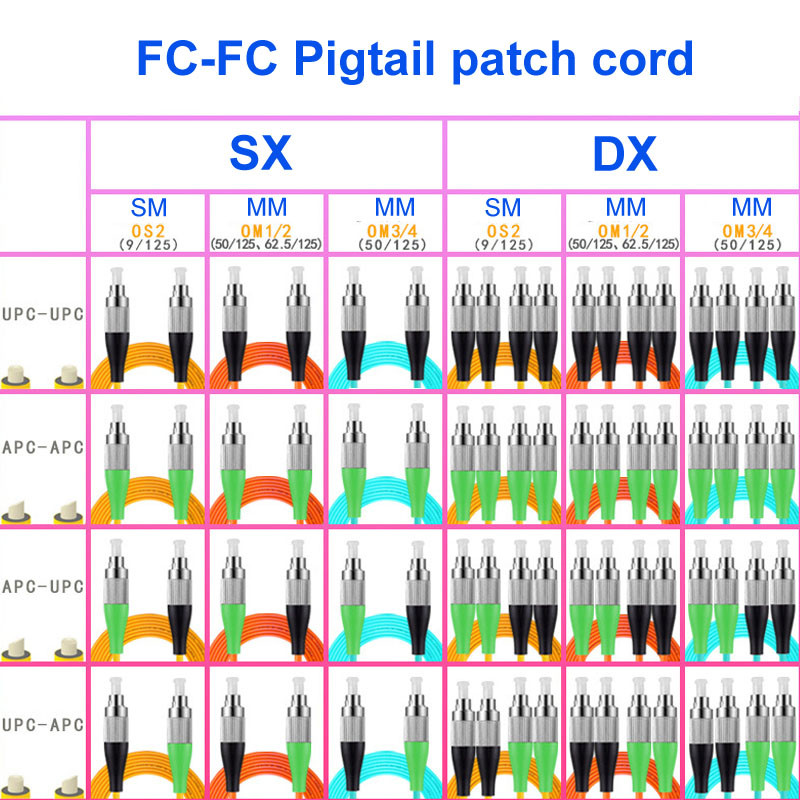

Product Picture:

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Quick Specs:

Prodcuct Parameters
Interface model:FC/APC~FC/APC Mode:Single Mode
Insertion loss:≤0.3dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

Product Profile:

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Offer OEM/ODM Service:

Offer OEM/ODM Service
FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...

Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25℃to +70℃ 2cycles <0.2dB <0.2dB
High temperature test +80℃,2hours
Low temperature test -40℃,2hours
Warm test +40℃90~95%RH,2hours

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Product connector introduction:

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

Common Connectors:

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable

About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

FC APC FC APC Fiber Optic Pigtail Cables Single Mode Dual Core OS2 Customizable
